Bubble trapped in graphene enables unprecedented imaging of hydrated
5 February 2014
A tiny water bubble trapped between two layers of graphene
provides the key to taking nanoscale images of liquid samples in an
electron microscope. It could for the first time allow imaging of
living cells in unprecedented detail and give more understanding of
health and disease at the most fundamental level.
Electron microscopes already provide amazingly clear images of
samples just a few nanometers across. But preparation methods mean
liquid samples can't be used — which excludes living tissue.
“You can’t put liquid in an electron microscope,” says Tolou
Shokuhfar, of Michigan Technological University. “So, if you have a
hydrated sample—and all living things are hydrated—you have to
freeze it, like a blueberry in an ice cube, and cut it into a
million thin pieces, so the electrons can pass through. Only then
can you image it to see what’s going on.”
After such treatment, the blueberry isn’t what it was, and
neither is human tissue. Shokuhfar, an assistant professor of
mechanical engineering-engineering mechanics, wondered if there
might be a way to make electron microscopes more friendly to
biological samples. That way, you might get a much better view of
what’s really going on at the sub-cellular level.
So she joined colleagues at the University of Illinois-Chicago
(UIC), and together they found a way. “You don’t need to freeze the
blueberry, you don’t need to slice it up with a diamond knife,” she
said. “You just put it in the electron microscope, and you can get
down and see the atoms.”
The trick was to encapsulate the sample so that all the water
stayed put while the electrons passed through freely. To do that,
the team, including Robert F. Klie, an associate professor of
physics and mechanical and industrial engineering at UIC, and UIC
graduate student Canhui Wang, turned to graphene.

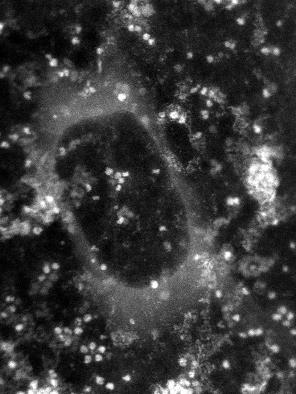

In this image generated by an electron
microscope, the white dots are the protein ferritin. The dark circle
in the middle is a bubble trapped within the graphene capsule
enclosing the sample, proving the existence of a liquid.
“Graphene is just a single layer of carbon atoms, and electrons
can go through it easily, but water does not,” Klie said. “If you
put a drop of water on graphene and top it with graphene, it forms
this little balloon of water.” The graphene is strong enough to hold
the water inside, even within the vacuum of an electron microscope.
The team tried their technique on a biochemical that plays a
major role in human health: ferritin. “It’s a protein that stores
and releases iron, which is critical for many body functions, and if
ferritin isn’t working right, it may be contributing to lots of
diseases, including Alzheimer’s and cancer,” Shokuhfar said.
The team made a microscopic sandwich, with ferritin immersed in
water as the filling and graphene as the bread, and sealed the
edges. Then, using a scanning transmission electron microscope, they
captured a variety of images showing ferritin’s atomic structure. In
addition, they used a special type of spectroscopy to identify
various atomic and electronic structures within the ferritin. Those
images showed that the ferritin was releasing iron and pinpointed
its specific form.
If the technique were used to compare ferritin taken from
diseased tissue with healthy ferritin, it could provide new insights
into illness at the molecular level. Those discoveries could lead to
new treatments. “I believe this will allow us to identify disease
signatures in ferritin and many other proteins,” Shokuhfar said.
High-Resolution Electron Microscopy and Spectroscopy of Ferritin
in Biocompatible Graphene Liquid Cells and Graphene Sandwiches. Feb.
4 Advanced Materials.
